Protection Information Management System
Application Scenarios
Applicable to 10 kV distribution switchgear stations, 35 kV and above substations, as well as new energy power plants, petrochemical, rail transit and other industries requiring protection information management systems. The substation completes fault information collection, processing, storage, and transmission to the remote master station system, while the master station performs fault information processing, analysis, publishing, and display functions.
System Composition
    Consists of two parts: protection information master station and substation. The master station system is based on a domestic operating system, supports domestic hardware, and consists of front-end servers, data servers, workstations, etc. The substation system consists of hosts, workstations, and related network communication equipment, with host hardware implemented via embedded devices or servers.

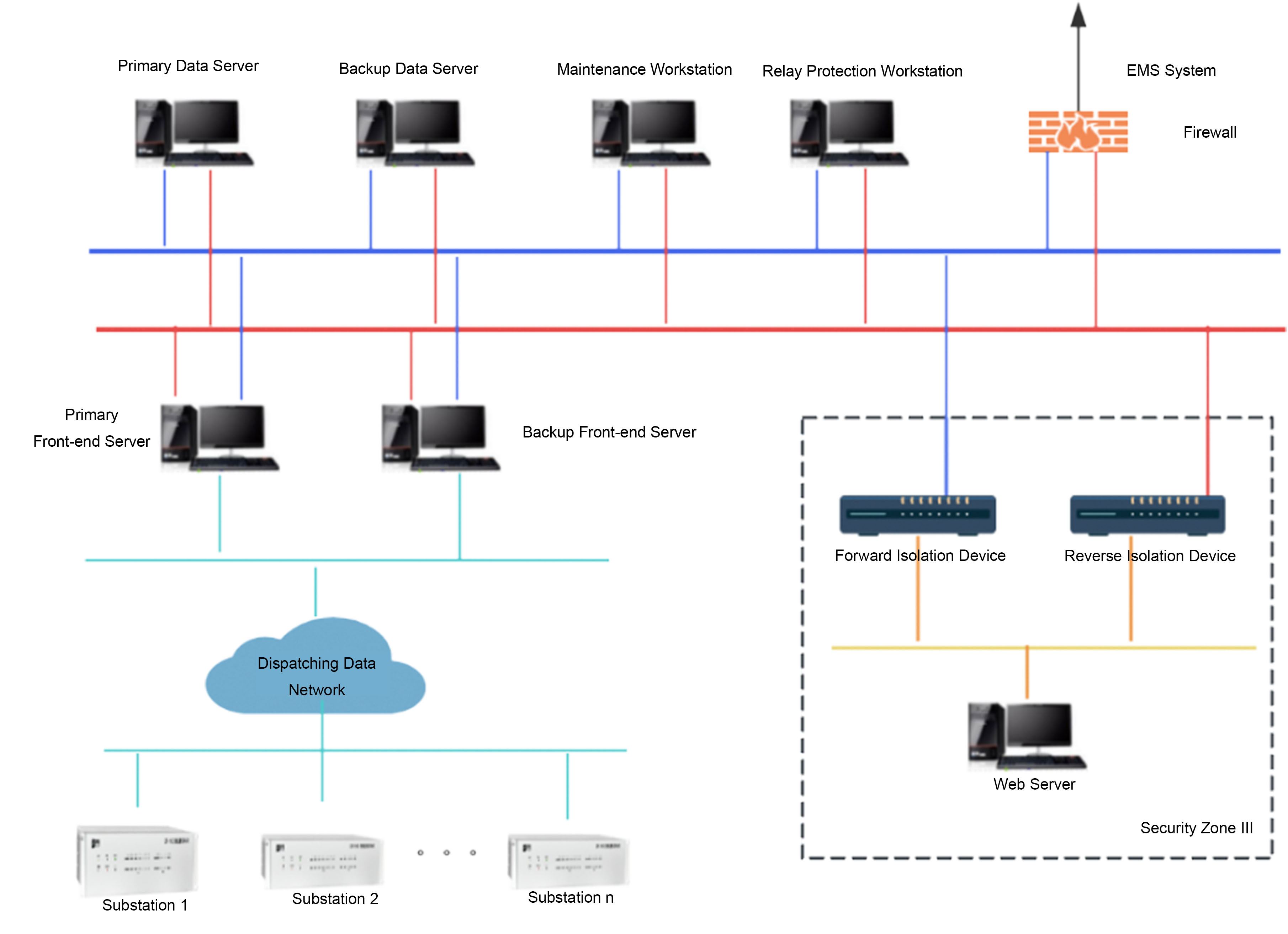

Network Architecture
Dongfang Electronics Corporation
Functional Features
  • Protection information collection management, protection function switching, setting management, fault waveform transmission and analysis, historical data transmission, etc.
    Protection information collection management, protection function switching, setting management, fault waveform transmission and analysis, historical data transmission, etc.
  • Adopts protection information adaptive modeling and configuration auto-import technologies to reduce substation modeling time.
    Adopts protection information adaptive modeling and configuration auto-import technologies to reduce substation modeling time.
  • The zero-configuration solution supports automatic discovery of protection devices, plug-and-play, and zero-configuration access to improve O&M efficiency.
    The zero-configuration solution supports automatic discovery of protection devices, plug-and-play, and zero-configuration access to improve O&M efficiency.
  • Achieves dynamic perception and automatic switching of communication protocols, enhancing secondary equipment O&M efficiency.
    Achieves dynamic perception and automatic switching of communication protocols, enhancing secondary equipment O&M efficiency.
Typical Cases
  • Shanghai Electric Power Company protection information system relay master station
  • Shanghai Electric Power Company 10kV switchgear configuration-free protection information substation
  • Tianjin Huadian Binhai Hangu 48MW green ecological hybrid photovoltaic power generation project
  • Tianjin Huadian secondary equipment adaptability retrofit: protection information recording, five-prevention master station, and substation
